Description

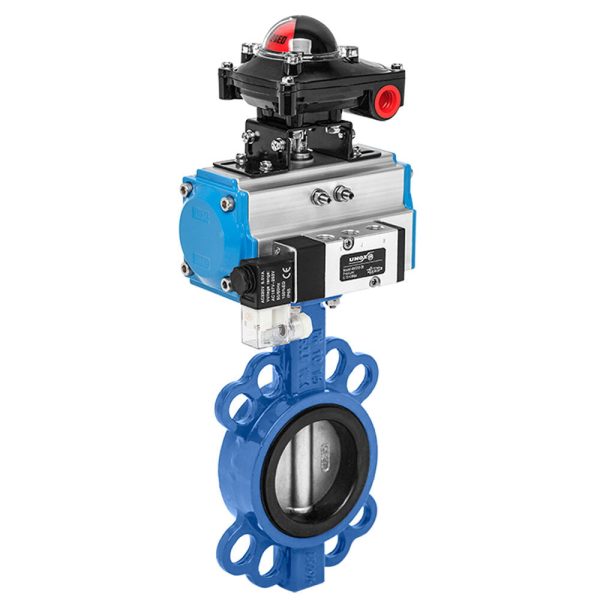

The Pneumatic Actuator with Butterfly Valve and Limit Switch Box Assembly is a complete solution for automated flow control of liquids, gases, and air in industrial piping systems. The system operates by rotating the butterfly valve disc through 90° to accurately and quickly open or close the flow path, while the pneumatic actuator ensures fast response and reliable operation under various working conditions.

The Limit Switch Box provides valve position feedback (open/closed), enabling remote monitoring and control through industrial automation systems such as PLC and DCS, thereby improving operational efficiency and system reliability.

UNOX offers this assembly with an advanced engineering design and premium-quality materials to ensure stable performance, long service life, and easy installation and maintenance.

⸻

Features

* Fast and precise automatic operation of butterfly valves.
* Suitable for controlling the flow of water, air, gases, and industrial fluids.
* Available in On/Off or Proportional Control configurations.
* Pneumatic actuator manufactured from high-quality corrosion-resistant aluminum.
* High output torque with low compressed air consumption.
* Integrated Limit Switch Box for valve position monitoring and open/close feedback.
* Easy installation and maintenance with full compatibility with standard accessories.
* Reliable performance and long service life in demanding industrial applications.

⸻

Design & Construction

The pneumatic actuator features a robust extruded aluminum housing that provides excellent corrosion resistance and durability in harsh industrial environments. Its balanced dual-piston rack-and-pinion mechanism ensures smooth operation, fast response, quiet performance, and reduced friction, contributing to an extended service life.

⸻

Standards & Compatibility

The assembly is manufactured in accordance with international industrial standards to ensure superior quality and compatibility, including:

* ISO 5211
* DIN 3337
* VDI/VDE 3845 (NAMUR)

These standards ensure easy installation of solenoid valves, limit switch boxes, and other control accessories, while providing full compatibility with industrial automation systems.

⸻

Applications

* Water Systems
* Steam Systems
* Compressed Air Systems
* Industrial Gas Systems
* Food Processing Industry
* Pharmaceutical Industry
* Chemical Industry
* Water Treatment Plants
* HVAC Systems
* Industrial Plants and Production Lines
