Description

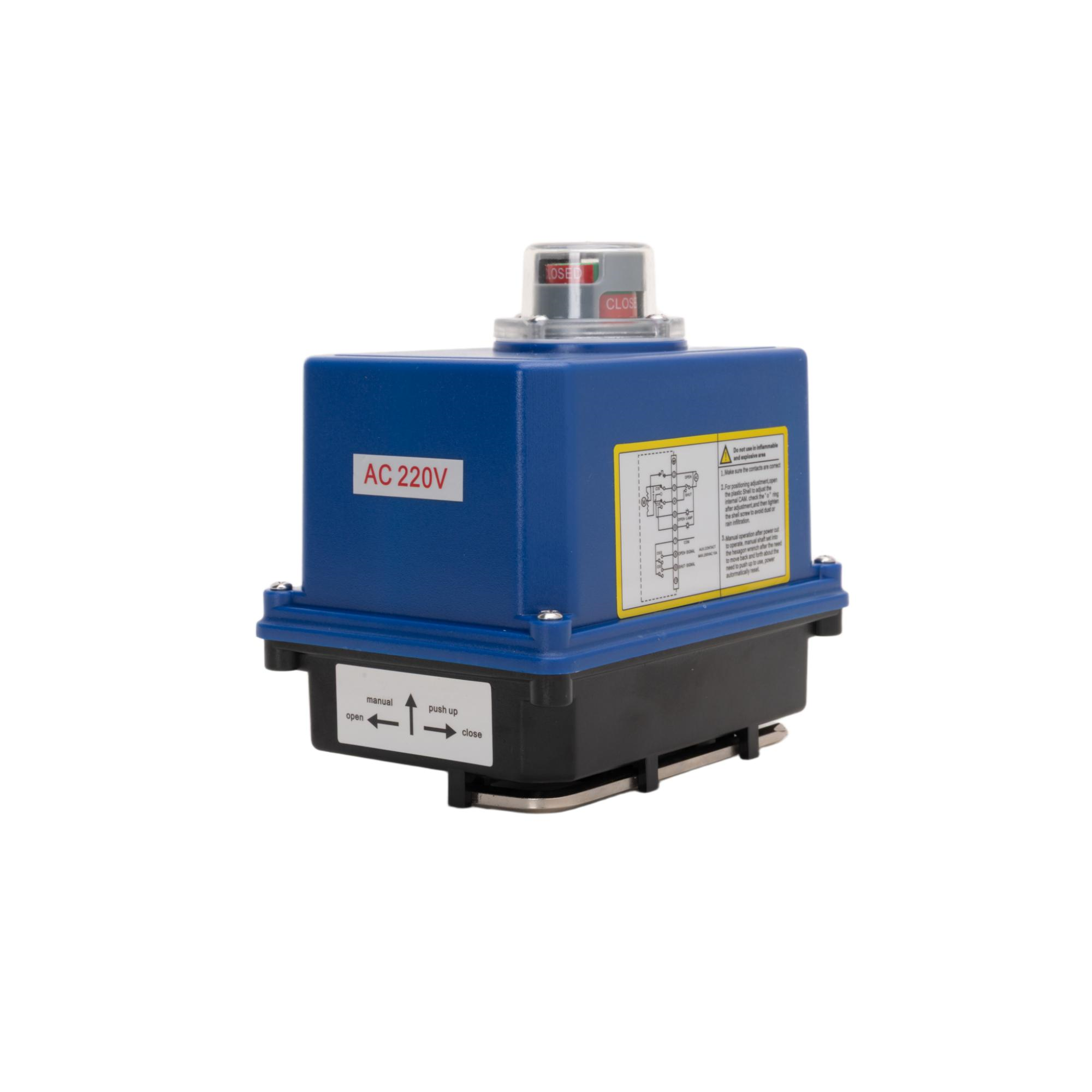

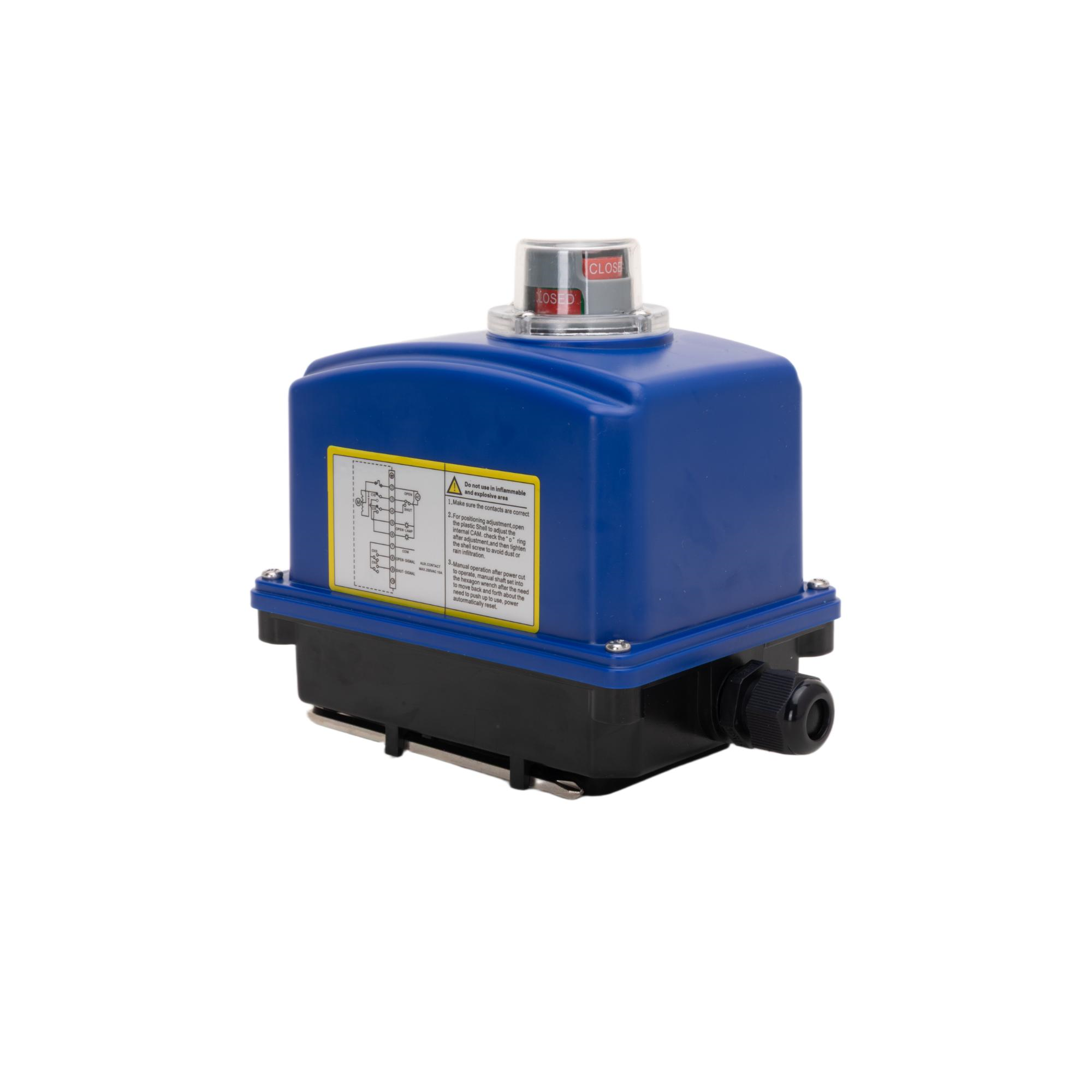

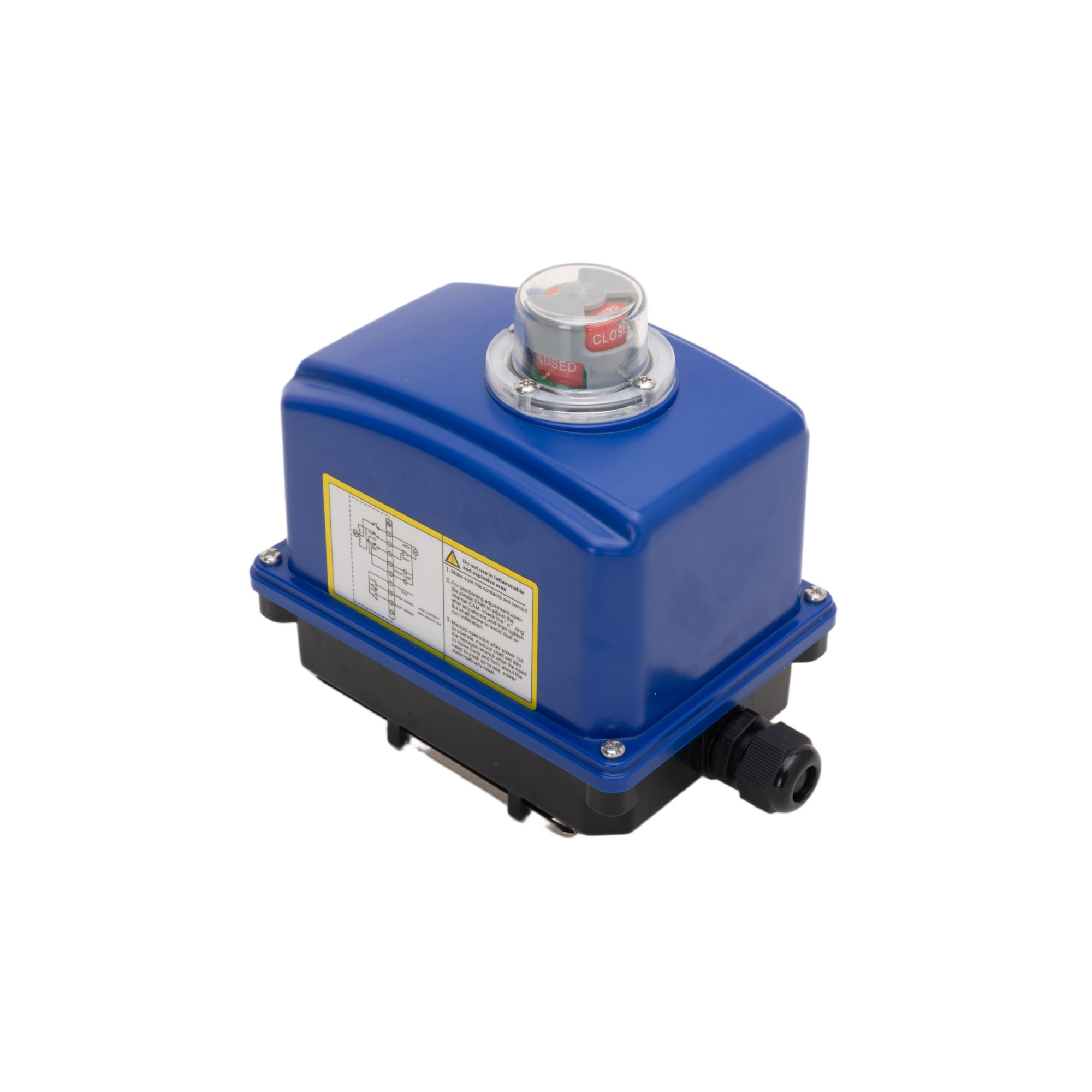

The 30 Nm Electric Actuator is a reliable solution for the automated operation of industrial valves. It converts electrical energy into precise rotary motion, ensuring smooth, accurate, and dependable valve opening and closing. Its compact design and reliable performance make it ideal for applications requiring low torque with high control accuracy.

The actuator features a high-efficiency electric motor and an internal gear mechanism that delivers smooth power transmission, stable operation, and extended service life while minimizing maintenance requirements. It can also be easily integrated with automation systems, allowing remote operation through PLCs or Building Management Systems (BMS).

⸻

Applications

The 30 Nm Electric Actuator is widely used in industrial and commercial applications, including:

* Ball valves.
* Butterfly valves.
* Water supply and water treatment systems.
* HVAC (Heating, Ventilation, and Air Conditioning) systems.
* Food and beverage processing.
* Pharmaceutical industries.
* Production lines and industrial processes.
* Low-pressure fluid systems.
* Industrial automation applications.

⸻

Design & Installation

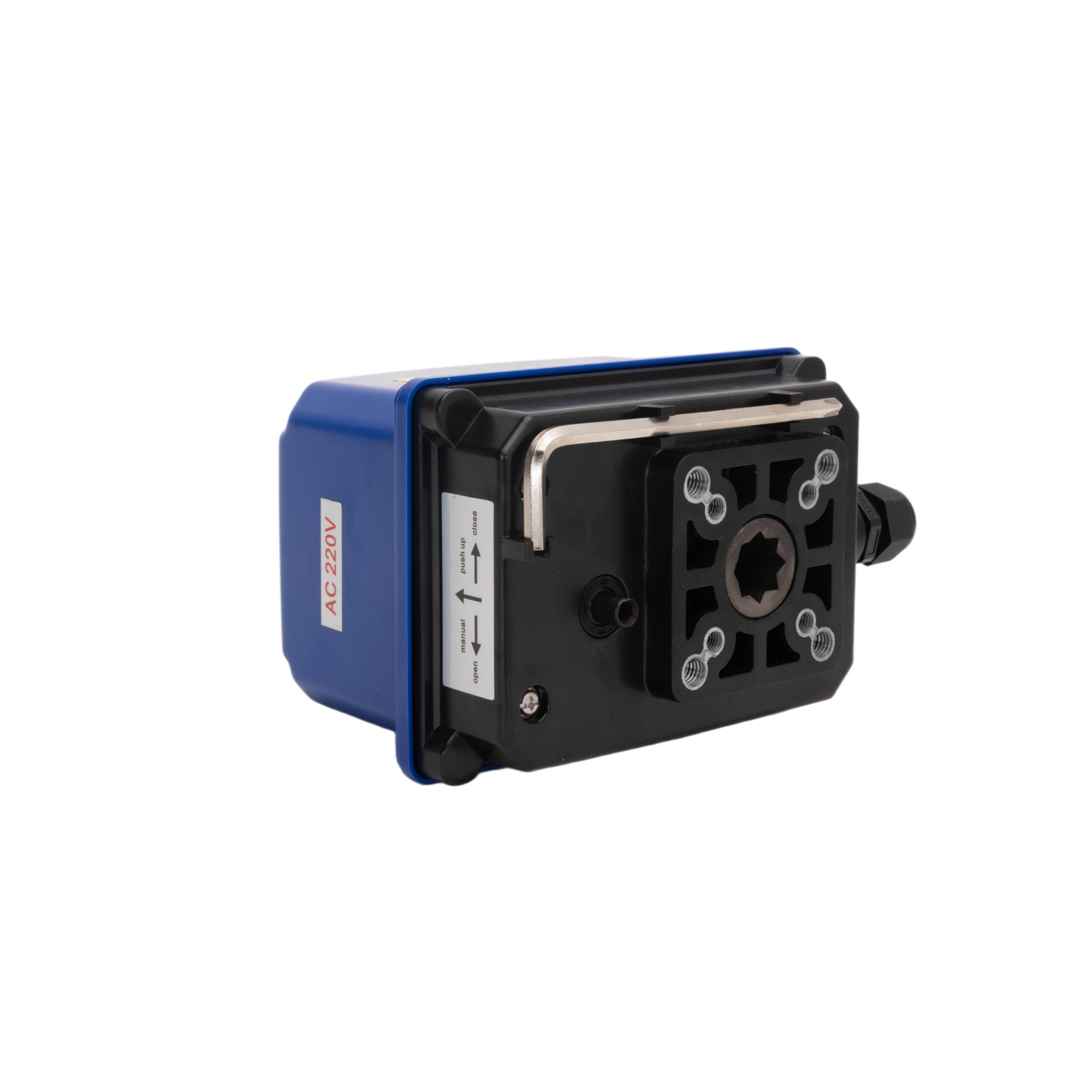

The actuator features a compact and lightweight design, making it easy to install in confined spaces. It is fully compatible with the ISO 5211 mounting standard, allowing installation on a wide range of valve types.

It includes:

* High-efficiency electric motor.
* Internal gear drive mechanism.
* Built-in limit switches.
* Open/close position indicator.
* Manual override for emergency operation.
* Waterproof cable entry.

⸻

Torque Adjustment

The actuator is equipped with an internal torque adjustment mechanism that helps protect the valve from overload during operation. Torque settings can be adjusted to meet application requirements, ensuring safe operation, stable performance, and longer equipment life.

⸻

Features

* Accurate and consistent torque output.
* Quiet and reliable electric operation.
* Compact design for space-saving installations.
* Easy installation and maintenance.
* Compatible with automation and control systems.
* High resistance to environmental conditions.
* Long service life and high operating efficiency.

⸻

Technical Specifications

* Model: URL-03AC
* Rated Torque: 30 Nm
* Housing Material: ABS Plastic
* Protection Class: IP67
* Operating Temperature: -10°C to +80°C
* Mounting Standard: ISO 5211
* Cable Entry: ½” Waterproof Connector
* Operation: 90° Quarter-Turn Electric Actuator

⸻

Why Choose the UNOX Electric Actuator?

The UNOX 30 Nm Electric Actuator delivers reliable performance, precise valve control, and seamless integration with automation systems. It is an ideal solution for operating industrial valves, offering high efficiency, dependable operation, and long-term durability across a wide range of applications.
