Description

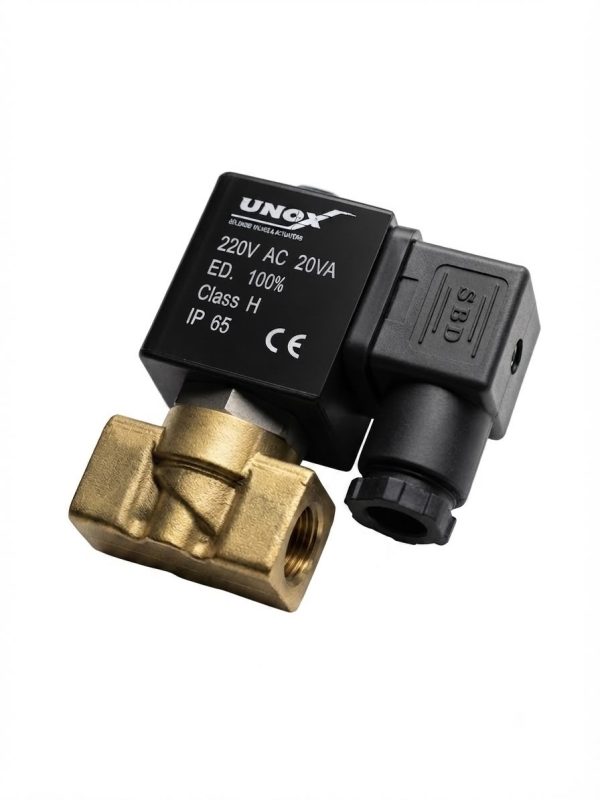

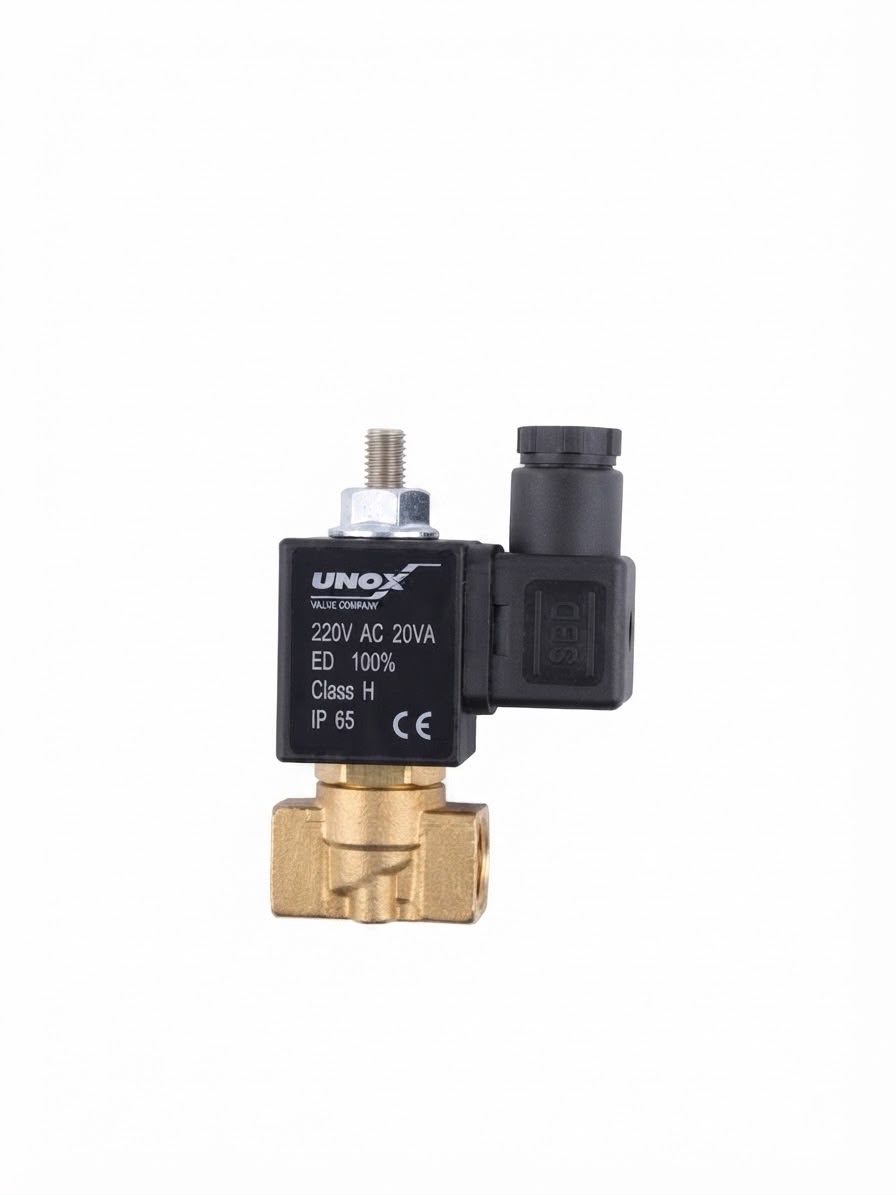

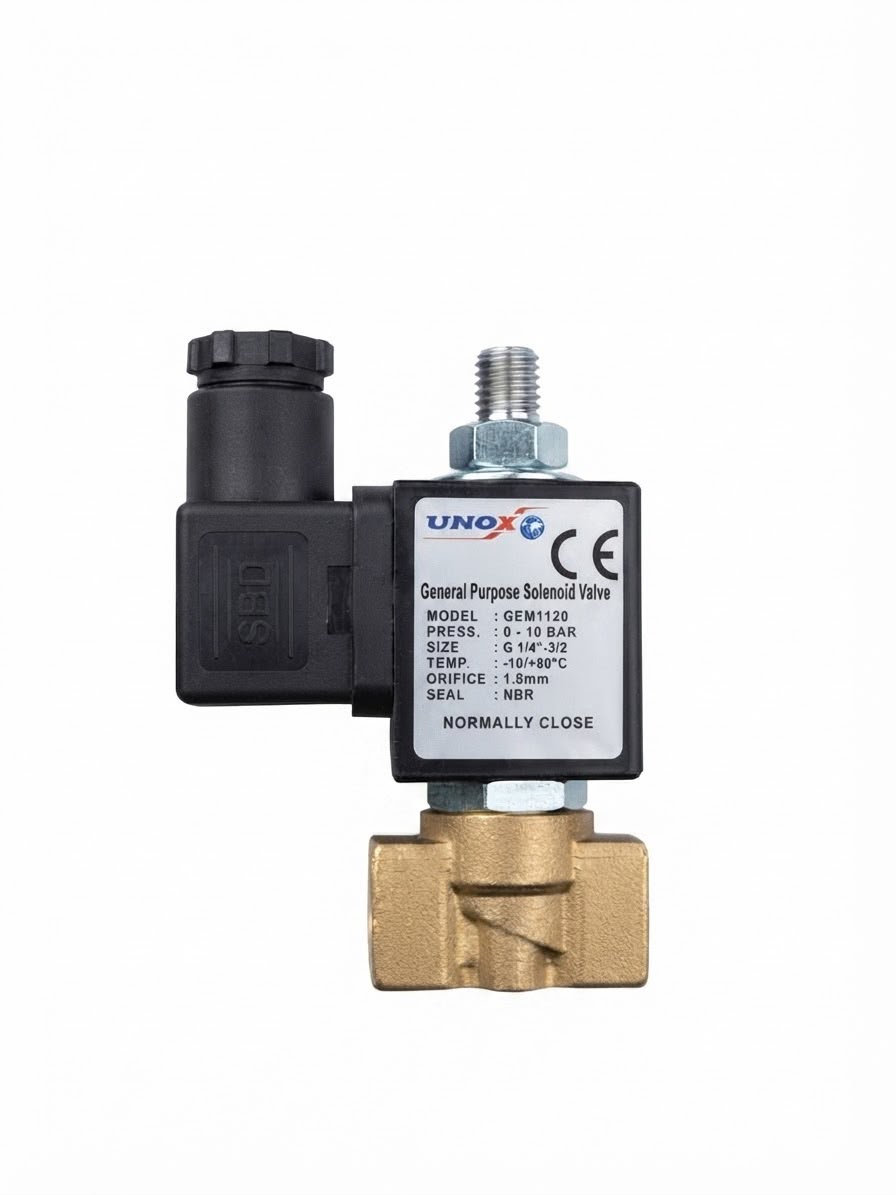

The Normally Closed (NC) 3/2 Solenoid Valve is one of the most widely used valves in industrial automation and control systems. It provides precise and reliable control of air, gases, and various fluids. The valve features three ports and two operating positions (3/2 Way). It remains closed when the electrical power is disconnected and automatically opens the flow path when the solenoid coil is energized.

With its fast response time, high reliability, and low power consumption, this type of solenoid valve is an ideal solution for pneumatic systems, packaging machinery, production lines, and industrial automation applications.

⸻

Operating Principle

The valve operates using an electromagnetic mechanism:

* Normal State (De-energized): The valve remains closed, preventing media flow.
* Energized State: The solenoid coil actuates the magnetic core, opening the flow path and directing the air or fluid according to the valve design.
* Power Off: The internal spring automatically returns the valve to its original closed position.

⸻

Features

* 3/2-way design for precise air and fluid control.
* Normally Closed (NC) configuration for enhanced operational safety during power loss.
* Fast response time.
* Low power consumption.
* Compact design for easy installation in limited spaces.
* Long service life with high-quality construction materials.
* Easy maintenance and replacement.
* Compatible with a wide range of industrial control systems.

⸻

Applications

The Normally Closed 3/2 Solenoid Valve is commonly used in:

* Pneumatic systems.
* Industrial automation and production lines.
* Packaging and processing machinery.
* Food and pharmaceutical industries.
* Inert gas control systems.
* Material handling and robotic equipment.
* Low-viscosity fluid control applications.

⸻

Materials

Material selection depends on the application and operating conditions and typically includes:

* Brass or stainless steel valve body.
* Stainless steel magnetic core.
* Corrosion-resistant stainless steel spring.
* Sealing materials such as NBR, EPDM, or FKM (Viton) depending on the working media and temperature requirements.

⸻

Why Choose a Normally Closed 3/2 Solenoid Valve?

A high-quality 3/2 Normally Closed Solenoid Valve improves system efficiency, minimizes downtime, and extends equipment service life. Its reliable design and rapid response ensure stable performance across a wide range of industrial applications while reducing maintenance requirements and enhancing operational safety.
