Description

The Automatic Bottom Blowdown System is an advanced industrial solution designed to automatically remove sediment, sludge, and accumulated impurities from steam boilers and industrial steam or liquid pipelines. By performing regular blowdown cycles, the system helps maintain optimum operating efficiency, improves heat transfer, and extends the service life of boilers and related equipment.

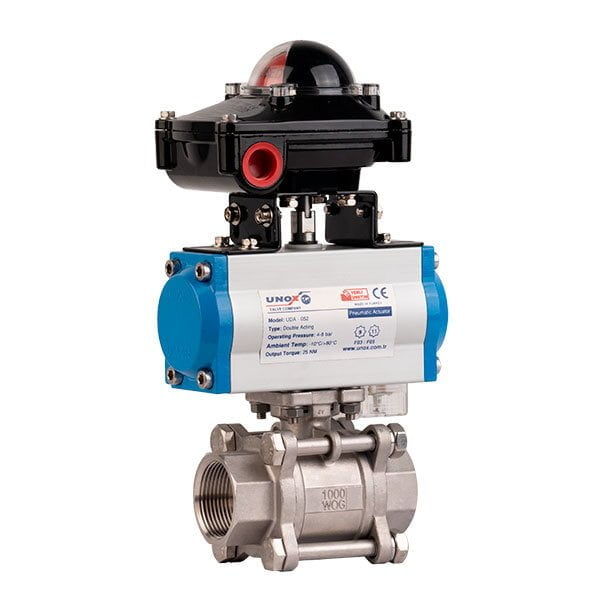

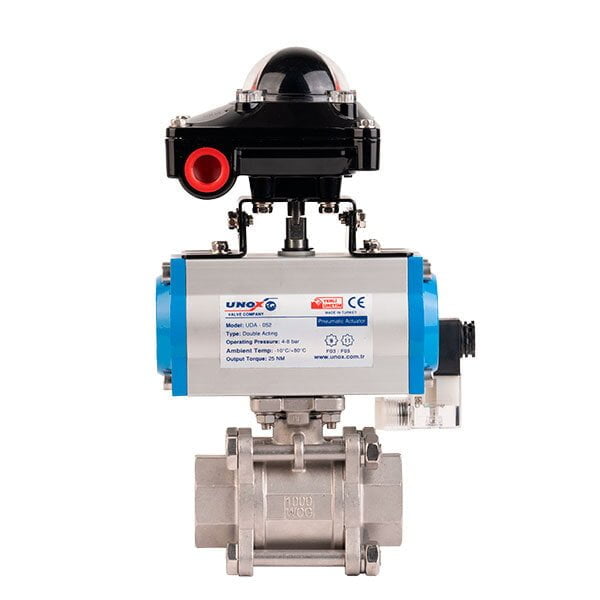

The system utilizes a Ball Valve actuated by a Pneumatic Actuator to perform automatic opening and closing operations based on preset time intervals or commands from a control system. This enables safe and efficient discharge of accumulated deposits without manual intervention, ensuring reliable and continuous operation.

⸻

Operating Principle

The system operates through a pneumatic actuator that rotates the ball valve to control the blowdown process:

* The valve automatically opens to discharge sediment and contaminated water.
* After the blowdown cycle is completed, the valve closes to minimize steam or fluid loss.
* The operating cycle can be controlled by a timer, PLC, or any industrial automation system.

⸻

System Components

A typical Automatic Bottom Blowdown System consists of:

* 2-Way Ball Valve.
* Pneumatic Actuator.
* Solenoid Valve for pneumatic control.
* Limit Switch Box for valve position feedback.
* Air regulator and pneumatic accessories.
* Timer or control unit for automatic blowdown scheduling.

⸻

Features

* Fully automatic operation without manual intervention.
* Efficient removal of sediment and impurities.
* Reduces steam and energy losses.
* Improves boiler and steam system efficiency.
* Extends equipment service life.
* Fast and reliable pneumatic actuator response.
* Easy integration with PLC and DCS control systems.
* Reduces routine maintenance requirements.
* Optional Limit Switch Box and Solenoid Valve configurations to meet application requirements.

⸻

Materials

The system is manufactured using high-quality materials to ensure durability and reliable performance, including:

* Brass or Stainless Steel ball valve body.
* Corrosion-resistant aluminum pneumatic actuator housing.
* High-strength internal gears.
* Durable sealing materials suitable for various temperatures and operating conditions.

⸻

Applications

The Automatic Bottom Blowdown System is widely used in:

* Steam boilers.
* Industrial steam systems.
* Power generation plants.
* Food and beverage industries.
* Pharmaceutical manufacturing.
* Chemical and petrochemical industries.
* Textile and paper mills.
* Water treatment facilities.
* Any industrial process requiring periodic automatic removal of sediment and sludge.

⸻

Why Choose an Automatic Bottom Blowdown System?

An Automatic Bottom Blowdown System helps maintain maximum boiler efficiency by preventing the buildup of sediment that can reduce heat transfer and increase energy consumption. It also minimizes maintenance costs, reduces equipment downtime, and enhances overall system reliability, making it an ideal solution for industrial steam and boiler applications requiring safe, efficient, and continuous operation.
