Description

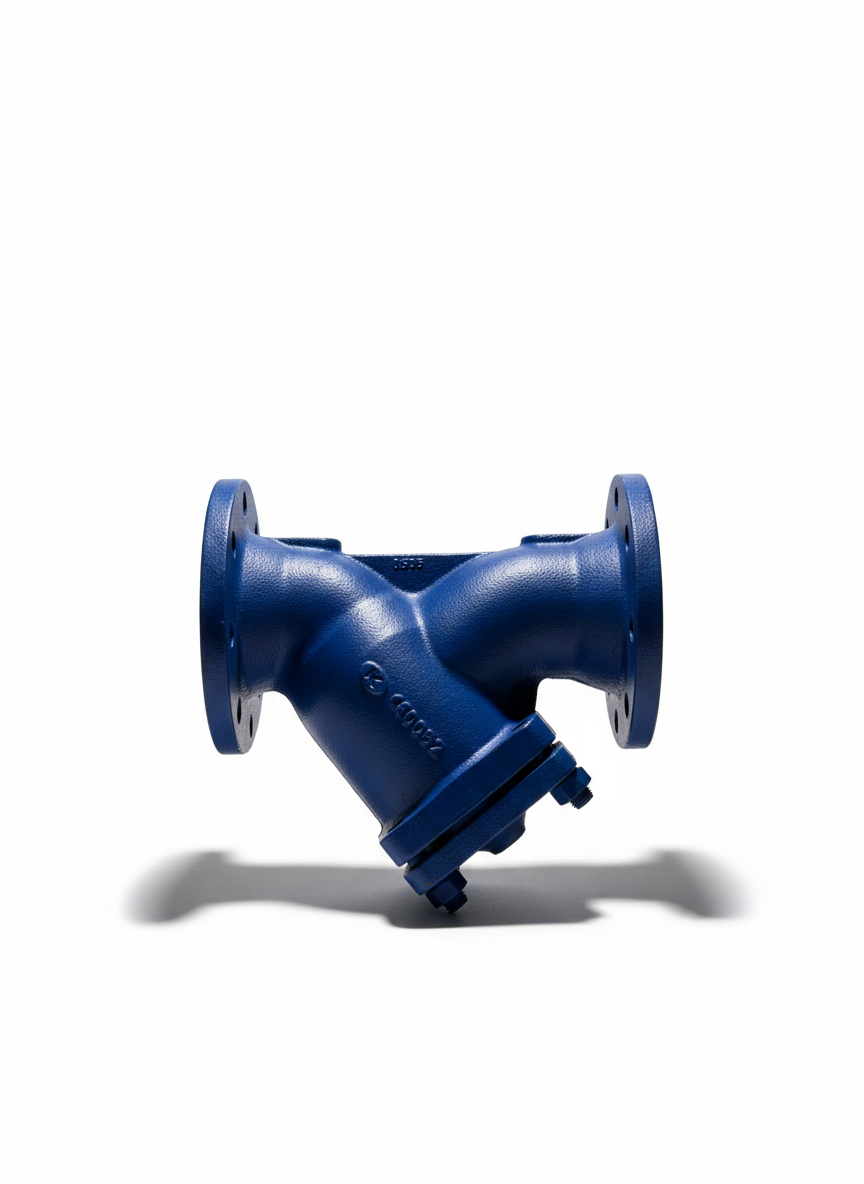

The ZSTRA Y-Strainer – Type 821 is an essential pipeline protection component designed to remove solid particles and impurities from steam and liquid systems before they reach sensitive equipment. It helps protect valves, pumps, boilers, and measuring instruments, extending their service life and ensuring reliable system operation.

The strainer body is available in a variety of materials, including gray cast iron, ductile iron, cast stainless steel, and stainless steel, providing excellent resistance to corrosion, pressure, and a wide range of operating temperatures while ensuring dependable performance in demanding industrial environments.

Its Y-Strainer design offers low pressure loss and allows easy cleaning or replacement of the strainer element, reducing downtime and improving overall system efficiency.

Technical Specifications

* Model: ZSTRA – Type 821
* Product Type: Y-Strainer
* Body Materials: Gray Cast Iron, Ductile Iron, Cast Stainless Steel, and Stainless Steel
* Nominal Pressure (PN): PN16
* Nominal Size (DN): DN15 to DN150
* Operating Temperature Range: -60°C to +350°C

Applications

The ZSTRA Y-Strainer – Type 821 is widely used in a variety of industrial applications, including:

* Steam systems
* Steam and hot water boilers
* Industrial water distribution systems
* Thermal oil systems
* Pumping systems and pipelines
* Chemical and petrochemical industries
* Power plants and industrial utility systems
