Ball valves perform the operations of directing or stopping the flow by means of a rotating element in the hose or pipe. A pneumatically actuated ball valve controls the flow by moving the rotary element using air pressure.

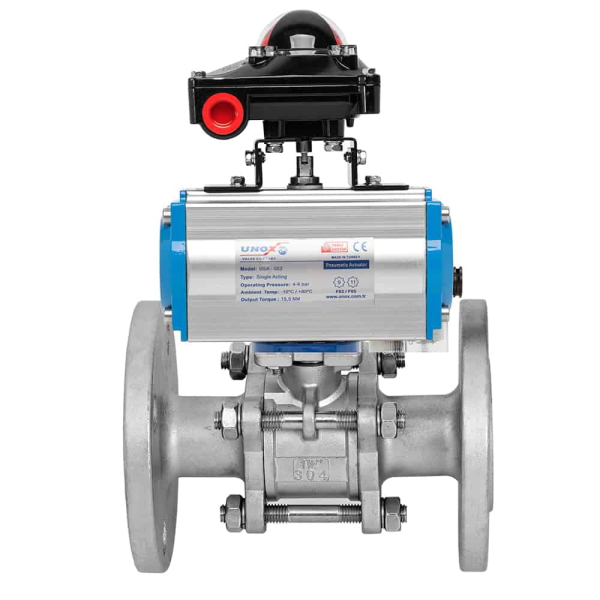

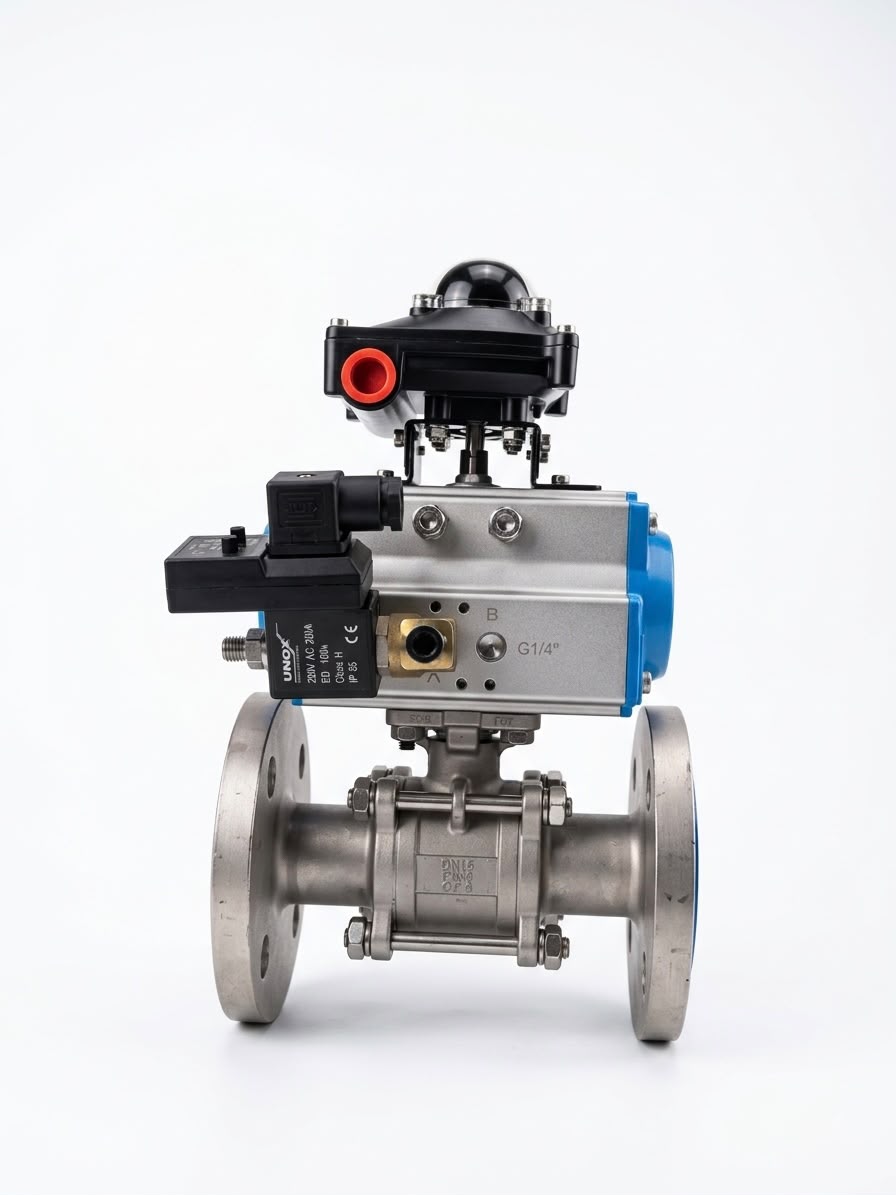

They are 2-Way Ball Valves with Pneumatic Actuator, operated by air supply, which we produce in stainless and brass, with different connection diameters, used in water, steam or some corrosive fluid installations according to their intended use.
Actuators varying between 9 nm and 400 nm forces depending on the connection diameters, and switch boxes and directional valves are used as optional auxiliary elements.
General Features
- It allows the BOTTOM BLOWDOWN operation to be performed automatically at set time intervals
- Application: Steam boilers
- Nennweiten / Size : DN 40
- Working Pressure: 40 Bar
- Working Temperature Range : -40°C-210°C
